Solution of outboard engine
Solution example

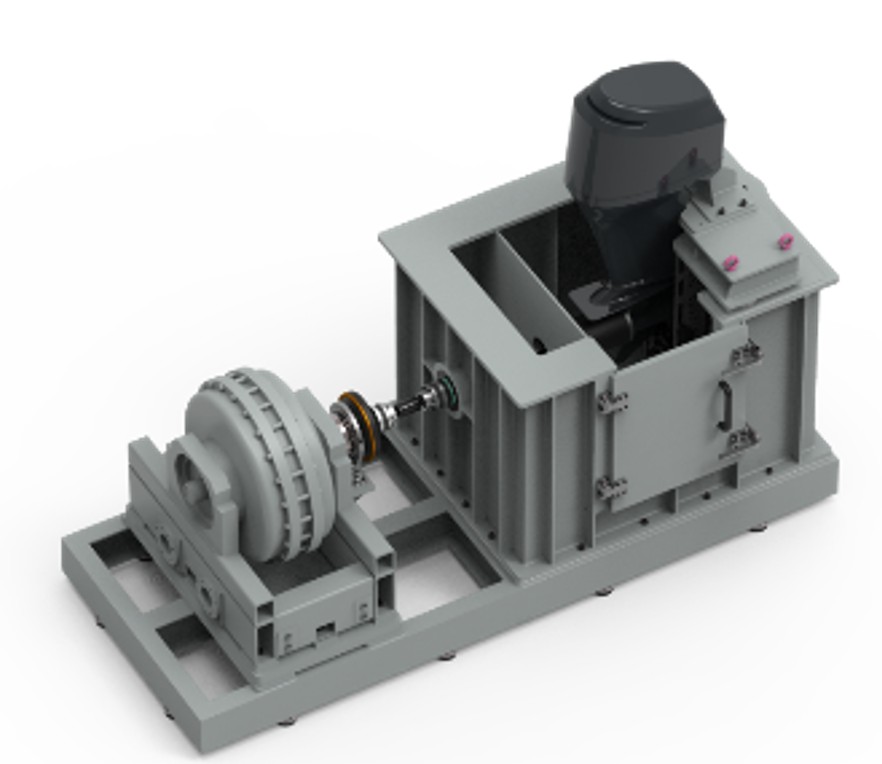

Electric Outboard engine test bench
Scope of the project
- Control and measurement system（PLC）
- AC dynamometer
- Drive unit
- Environmental temperature chamber
- Spindle unit
- Frame
- Water tank
Feature
- The propeller shaft is mechanically coupled to the dynamometer, and load testing is performed with the outboard motor submerged in a water tank.
- Enables evaluation of the drive‑train section consisting only of the vertical shaft and bevel gears.
- Axial load is applied to simulate propulsion force.
- The top cowling area of the outboard motor—exposed above the water surface—is temperature‑controlled in a temperature chamber, enabling cold‑start testing after low‑temperature soaking.
- Evaluation of the power supply for the test inverter and power‑meter measurement is also supported.
