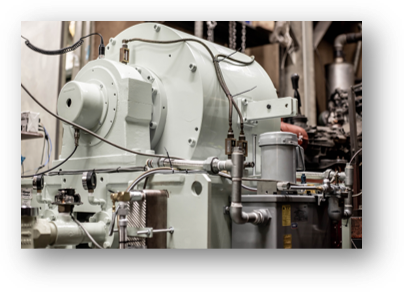

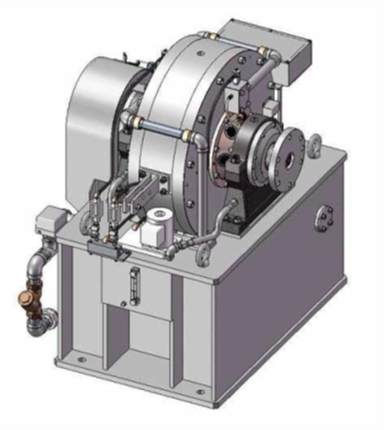

Eddy current dynamometer
Eddy current dynamometer
Output range：2.2 kW – 1,000 kW
We are the market leader among Japanese agricultural machinery manufacturers, with over 1,000 units
delivered domestically and internationally.
Our extensive product lineup enables us to meet diverse customer application requirements.
Product Lineup For details
please refer to the product catalog.
| Model | Direction of Rotation | Main Specifications | Applicable Engines |
|---|---|---|---|
| ED type | One-direction | 2.2 ～ 1,000kW / middle speed range | Automobiles, trucks, construction machinery, agricultural machinery, and marine vessels |
| ED-HT type | One-direction | 220 ～ 750kW / Middle speed range | Agricultural machinery, generators, marine vessels, and more |
| EDH type | One-direction | 220 ～ 800kW / High speed range | Racing engine |
| EDV type Vertical type | One-direction | 2.2 ～ 1,000kW / Middle speed range | VTOAL General‑purpose engine |
User Case Example

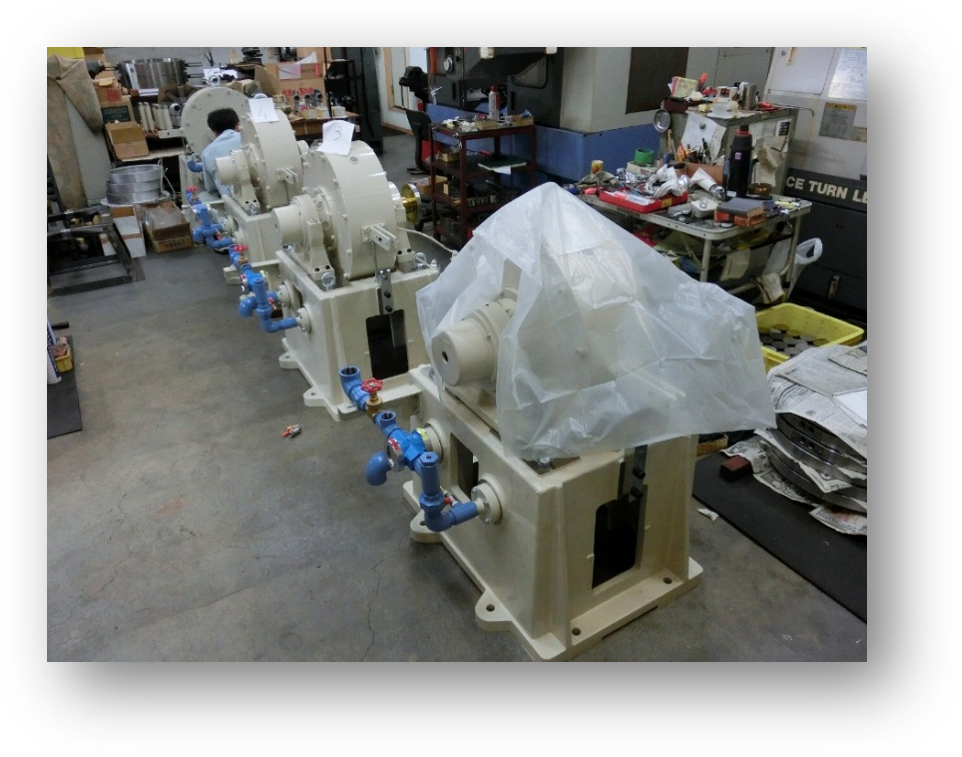

End of line test bench
Scope of the project
・41sets eddy current dynamometers

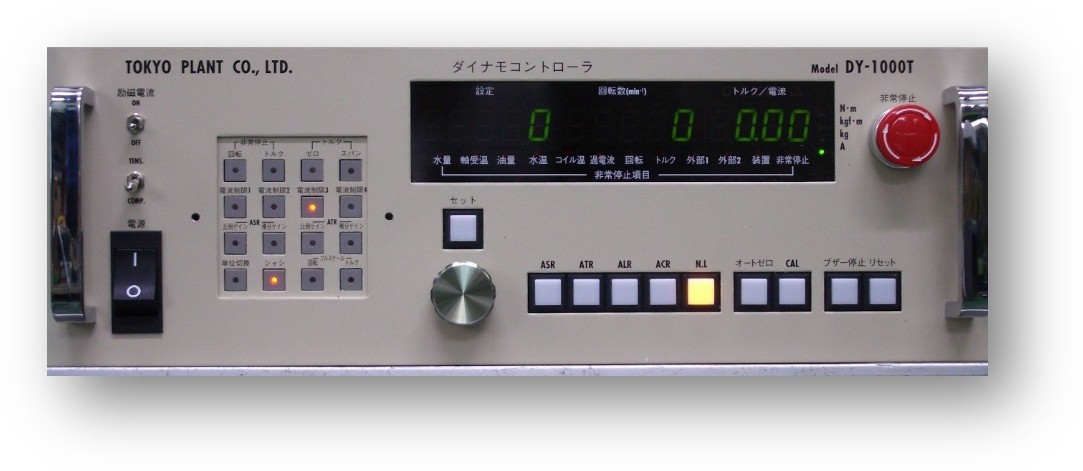

・41sets dynamometer controller
Feature
It contributes to improving the takt time of the engine
production line, enabling customers to achieve their
planned production volume.

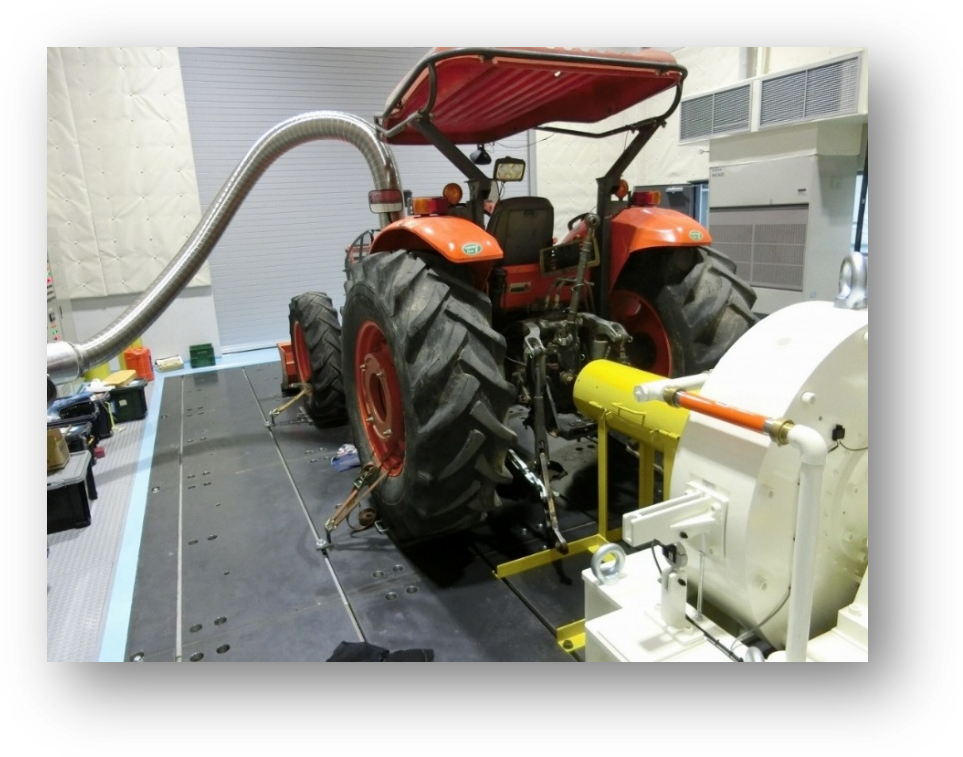

PTO test bench for tractor
Scope of the project
・Eddy current dynamometer
・Dynamometer controller
・Automation system
・Fuel flow meter
etc
Feature
The output efficiency of the tractor’s power take‑off (PTO)is inspected.
