Solution of eAXLE test
Solution example
eAXLE test bench
Scope of the project
- Automation system MORPHEE
- 2sets of AC dynamometer
（220kW/3,000Nm/3,000rpm） - Drive unit
- 2sets of Drive shafts
Feature）
Performance evaluation testing of the e‑AXLE
can be conducted using two dynamometers.
By utilizing power regeneration, the system
reduces the customer’s overall energy cost.

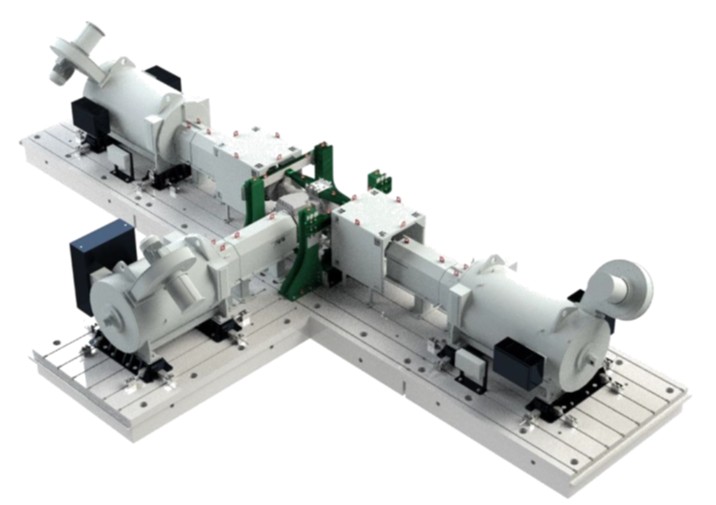

eAXLE test bench for off-load application
Scope of the project

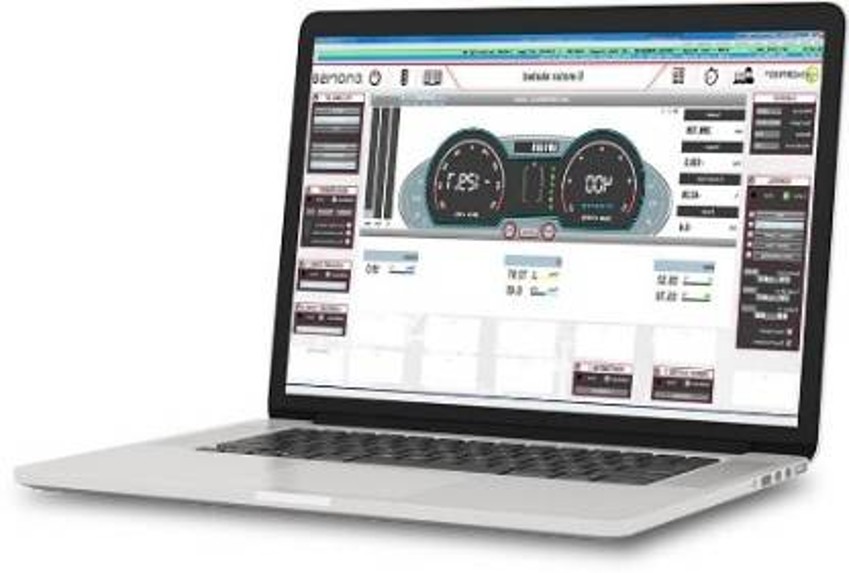

- Automation system MORPHEE

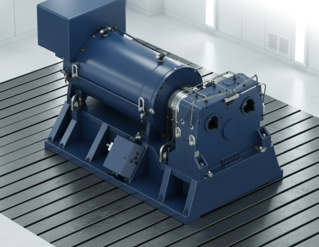

- 1sets of AC dynamometer（Drive）
（600kW/25,00Nm/3,000rpm） - 2sets of AC dynamometer（Driven）
（450kW/40,000Nm/900rpm） - 3sets of Drive unit
Feature）
Performance evaluation testing of the e‑AXLE
can be conducted using three dynamometers.
By utilizing power regeneration, the system
reduces the customer’s overall energy cost.
