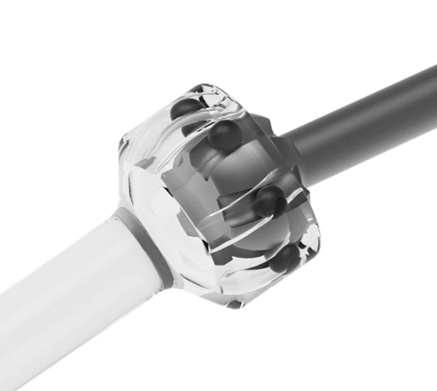

CV-Joint Shaft
Feature
・Accurate transmission of torque and rotational speed
・Correction of misalignment
・Reduced bench‑up time
・Compact size for minimizing test‑bench space requirements
・Vibration reduction
・Lower moment of inertia through weight reduction
Specifications
Austria‑based tectos offers a wide range of products covering low to high rotational speeds and low to high torque levels.

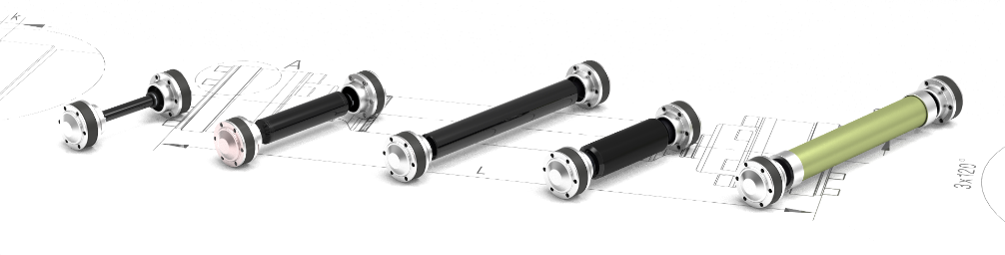

・t70X Series
Torque range: 0–40,000Nm
Speed range: 0–10,000rpm
・t80X Series
Torque range: 0–1,000 Nm
Speed range: 0–30,000rpm
Noise‑isolated electrical version available
User case example

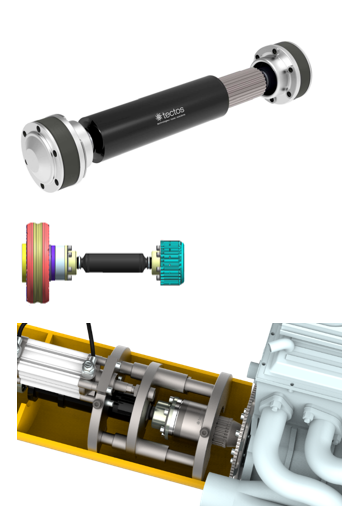

①The t710 series(telescopic shaft)
②The t‑Dock docking system
①Features an extendable shaft, allowing installation without modifying the layout of the test bench.
②Automates test‑bench connection through a spline mechanism, reducing setup time for each testing stage.
Its highly repeatable connection method also prevents human‑induced misalignment.

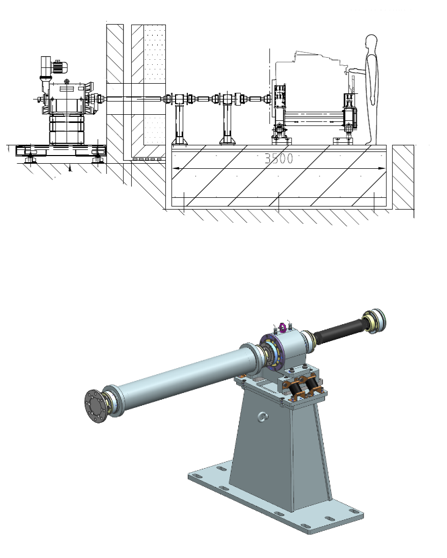

The NV test bench
Enables testing in environments such as anechoic chambers and temperature controlled chambers while maintaining high quietness.
It allows tests to be performed with proper alignment and without introducing imbalance.
