Engine throttle mechanical actuator

It conducts measurement and feedback control for test piece via engine throttle controller (optional) or stroke setting box.
It is equipped with measurement function for speed and throttle opening, control function for speed and throttle opening of test piece by automatic, and alarm function that detects and processes system malfunction.
It realizes the stable control by PID control,
and it protects test piece by torque (motor current) limiting function.
Stroke easily can be set beside a test piece.
Electromagnetic clutch turns to disconnected state when power failure or emergency stop and instantaneously fully close by the return spring to secure the safety of a test piece.
Opening can be operated by switch with panel adjuster or external analog voltage.

System and application sample

Our dyno controller can control and measure by programmed operation from upper system.
And it supports expansion to existing system.

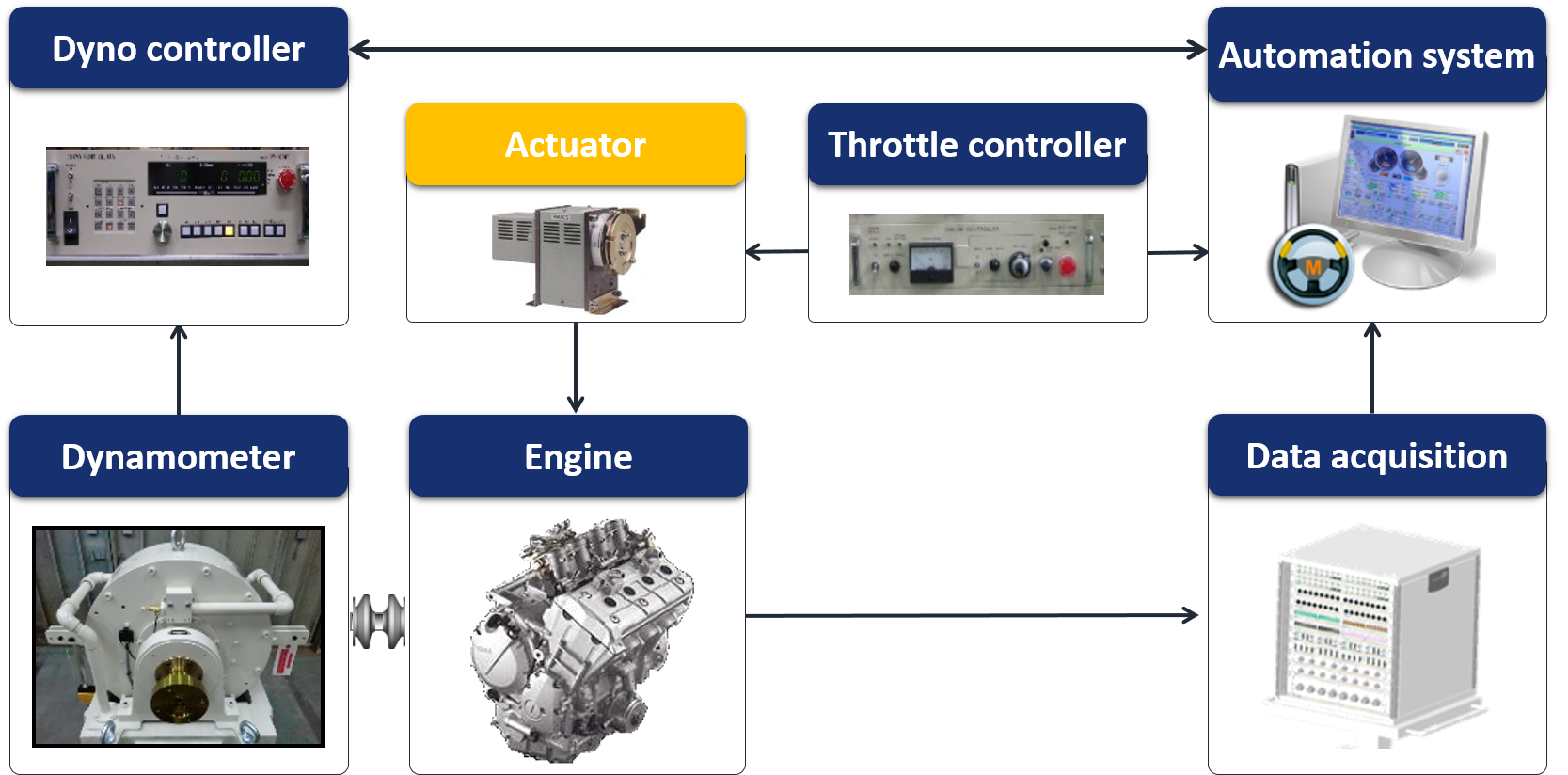

Standard test bed system (reference)

We can offer the most suitable test bed engineering to customers.
Please contact us for further details about automation of test bed, additional automation system, data acquisition sensors, test bed layout and shaft couplings.
We can offer the suitable proposal for your budget and request.

AM series specification

Model	AM-130	AM-140	AM-150
Motor capacity (W)	AC servo/30	AC servo/100	AC servo/200
Operating speed (s/F.S)	0.7	0.3	0.1
Effective stroke (mm)	100	100	100
Operating force (N)	147	147	147
Driving unit	AD-1110	AD-1120	AD-1130
Outer dimensions (mm)	W245 x H162 x D138.5	W335 x H165 x D147.5	W335 x H165 x D147.5
Mass (kg)	5.2 (excl. the stand mass)	8.5 (excl. the stand mass)	10.5 (excl. the stand mass)

*Specification is subject to change due to product modification.
