Tanaka's Hydraulic Dynamometer ＞ Size

Tanaka's Hydraulic Dynamometer

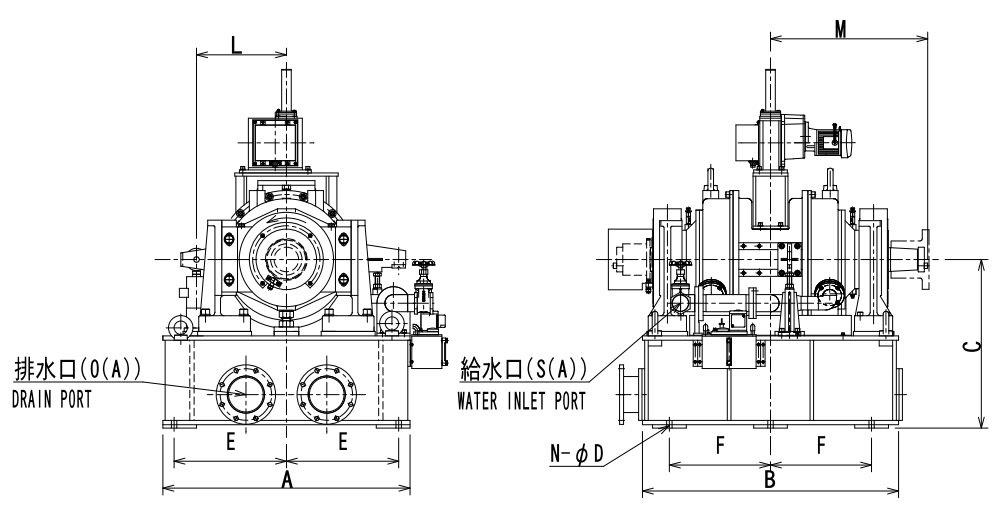

P-A & PRS-A types

Unit: mm

Model	Mass kg	A	B	C	E	F	N-ΦD	L	M	S(A)	O(A)
P-30A PRS-30A	1,100	950	820	600	420	320	4-24	358.1	500	50	125
P-35A PRS-35A	1,550	1,100	940	650	500	350	4-24	400	600	50	150
P-40A PRS-40A	1,600	1,100	970	650	500	350	4-24	375	635	50	150
P-45A PRS-45A	2,100	1,100	1,060	750	500	425	6-24	430	680	65	150
P-55A PRS-55A	3,500	1,400	1,200	750	650	500	6-24	500	835	80	150
P-60A PRS-60A	4,400	1,700	1,300	950	815	600	6-24	680	970	80	200
P-70A PRS-70A	7,500	1,980	1,750	1,100				800	1,085	100	200
P-80A	11,000	2,000	2,200	1,200				800	1,230	125	200
P-90A	17,000	2,000	2,550	1,200				800	1,345	150	300

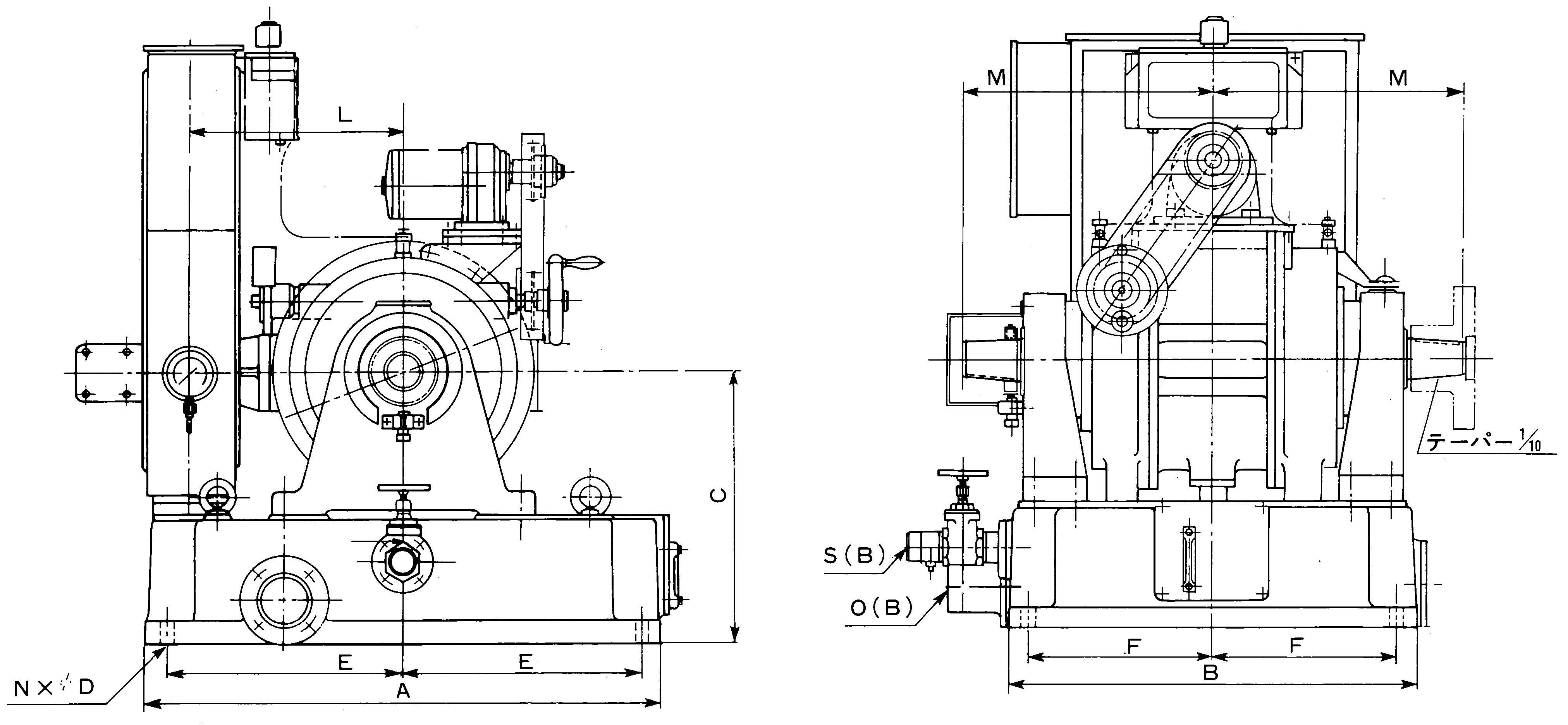

P & PRS types

Unit: mm

Model	Mass kg	A	B	C	E	E	F	N-ΦD	L	M	Inlet water port S(B)	Outlet water port O(B)
P-1.5 PRS-1.5	150	505	396	260	325	140	140	4-17	238.7	248	¾	1¼
P-1.8	250	535	440	280	330	155	160	4-17	238.7	271	1	2
P-2.0 PRS-2.0	340	640	600	320	375	215	220	4-17	286.5	330	1	2
P-2.5 PRS-2.5	420	740	630	370	460	230	250	4-17	358.1	378	1	2
P-3.0 PRS-3.0	750	870	700	460	400	400	315	4-21	358.1	430	1½	3
P-3.5 PRS-3.5	1,350	1,010	860	550	620	330	325	4-21	358.1	430	1½	3
P-4.0 PRS-4.0	1,800	1,120	1,000	590	630	430	180	4-21	477.5	618.5	2	3
P-4.5 PRS-4.5	2,200	1,190	1,140	590	625	515	465	6-20	477.5	676	2	3½

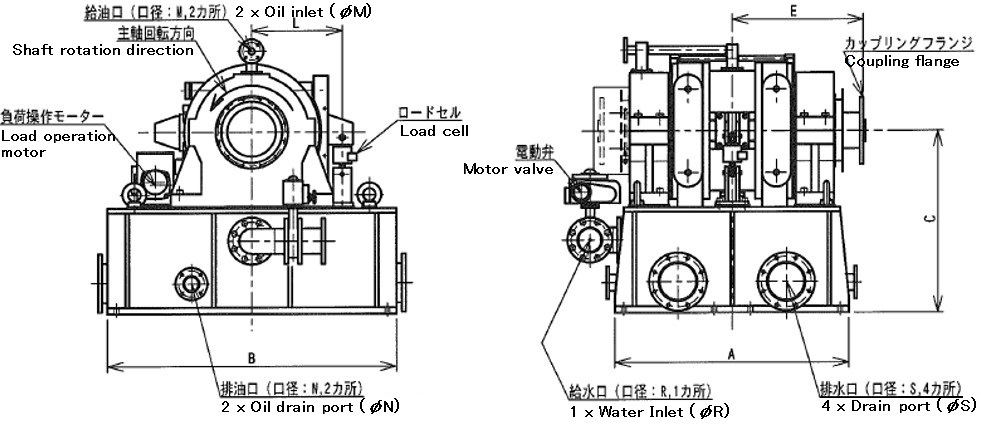

PHS type

Unit: mm

Model	Mass kg	A	B	C	E	L	M	N	R	S
PHS-3.0	3,200	1,100	1,200	860	525	500	25A	50A	100A	200A
PHS-4.0	7,000	1,300	1,600	1,000	730	500	25A	80A	100A	200A
PHS-5.5	16,000	2,500	2,680	1,400	1,268	1,000	40A	80A	250A	300A
PHS-6.5	26,000	2,600	2,680	1,460	1,300	1,000	40A	80A	300A	300A

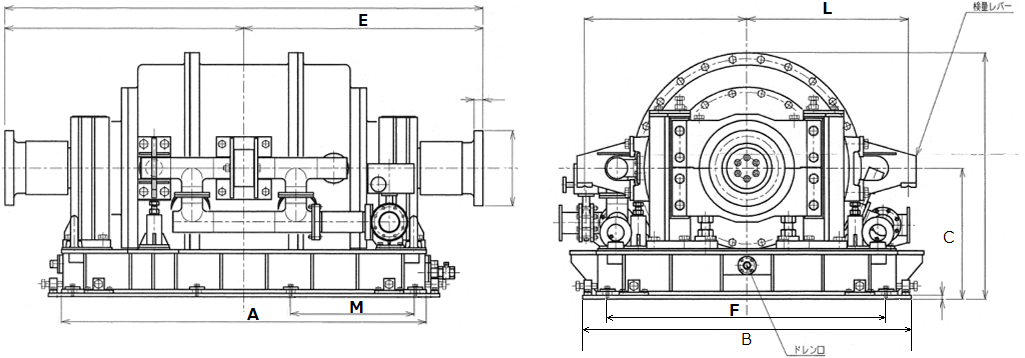

PRD type

Unit: mm

Model	Mass kg	A	B	C	E	F	N-ΦD	L	M	Inlet water port S(B)	Outlet water port O(B)
PRD-10	9,000	2,100	1,750	770	1,420	1,600	12-Φ20	1,000	700	125A	125A
PRD-11	17,500	2,452	2,000	860	1,575	1,850	8-Φ24	1,074	830	125A	125A
PRD-13	30,000	2,540	2,640	860	1,724	1,800	16-Φ26	1,200	520	125A	125A

* Specification is subject to change due to product modification.
